Description
SPECIFICATION
| Features / filters | |
| Antenna type | External |
| Antennas quantity | 6 |
| Built-in processor | Yes |
| Cables included | LAN (RJ-45) |
| Depth | 186 |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet WAN | Yes |
| Harmonized System (HS) code | 85176990 |
| Height | 186 |
| Internal memory | 256 |
| LED indicators | LAN, Power |
| Manual | Yes |
| Mobile operating systems supported | Android, iOS |
| Modulation | BPSK,CCK,DBPSK,DQPSK,OFDM,QPSK |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Operating relative humidity (H-H) | 10 – 90 |
| Operating temperature (T-T) | 0 – 40 |
| Power source type | AC |
| Processor architecture | ARM Cortex-A53 |
| Processor cores | 2 |
| Processor frequency | 1350 |
| Processor manufacturer | MediaTek |
| Processor model | Filogic800 |
| Product colour | Black |
| Product type | Tabletop router |
| Reset button | Yes |
| Security algorithms | WPA-PSK,WPA2-PSK,WPA3-SAE |
| Storage relative humidity (H-H) | 5 – 90 |
| Storage temperature (T-T) | -40 – 70 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Width | 284 |
| WLAN data transfer rate (max) | 1000 |
| Basic general data | |
| Brand | Xiaomi |
| Manufacturer | Mi |
| Model | AX3200 |
| Type | Wireless Router |
| Dimensions | 284mm × 186mm × 186mm |
| Product colour | Black |
| Hardware configuration | |

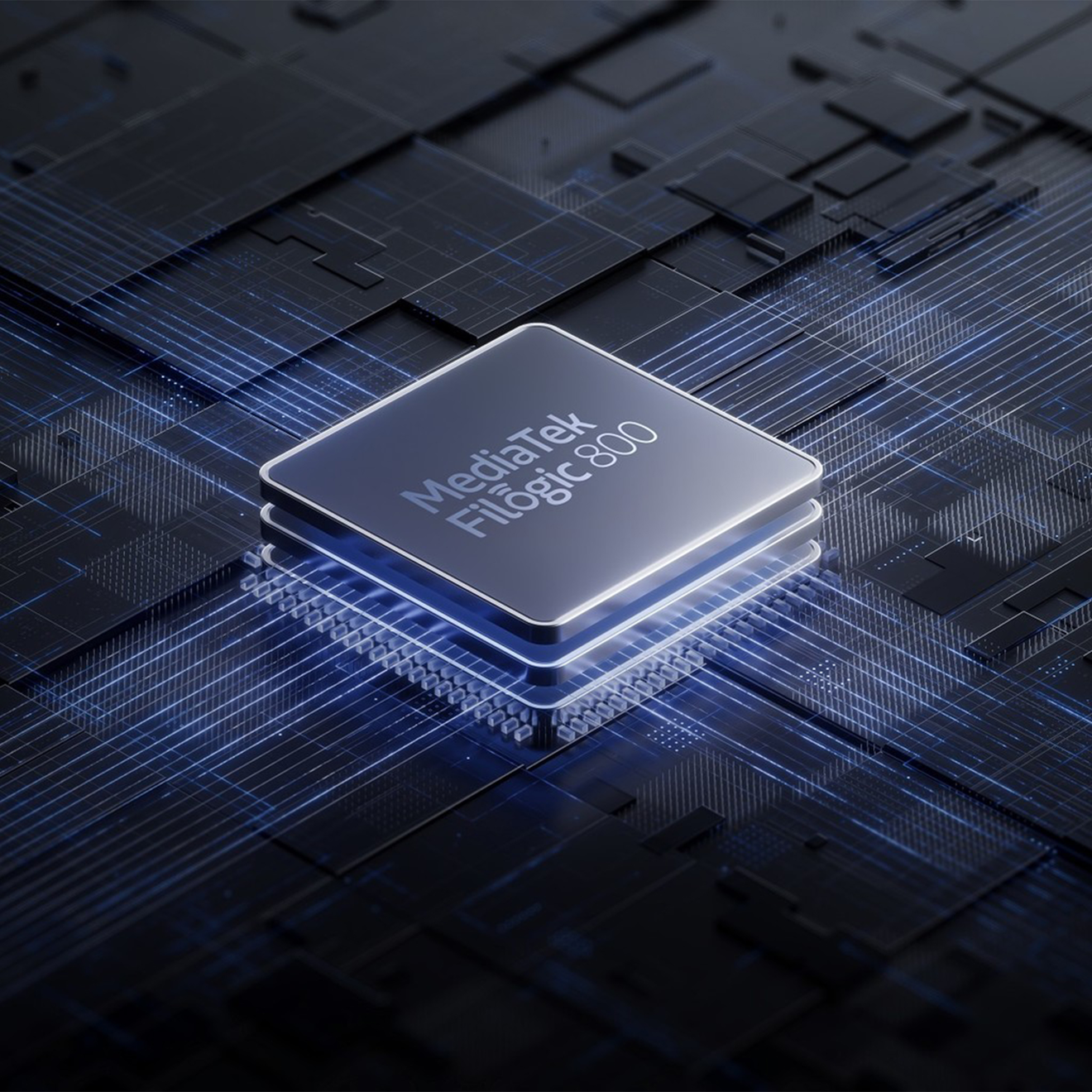

| Processor | MediaTek Filogic800 Dual-core A53 1.35GHz |
| Memory | 256MB |
| 2.4GHz Wi-Fi | 4×4 (supports up to IEEE 802.11n protocol, theoretical maximum speed is 800Mbps) |
| 5GHz Wi-Fi | 4×4 (supports IEEE 802.11ax protocol, theoretical maximum transmission speed is 2402Mbps) |
| Antennas | External omni-directional antennas |

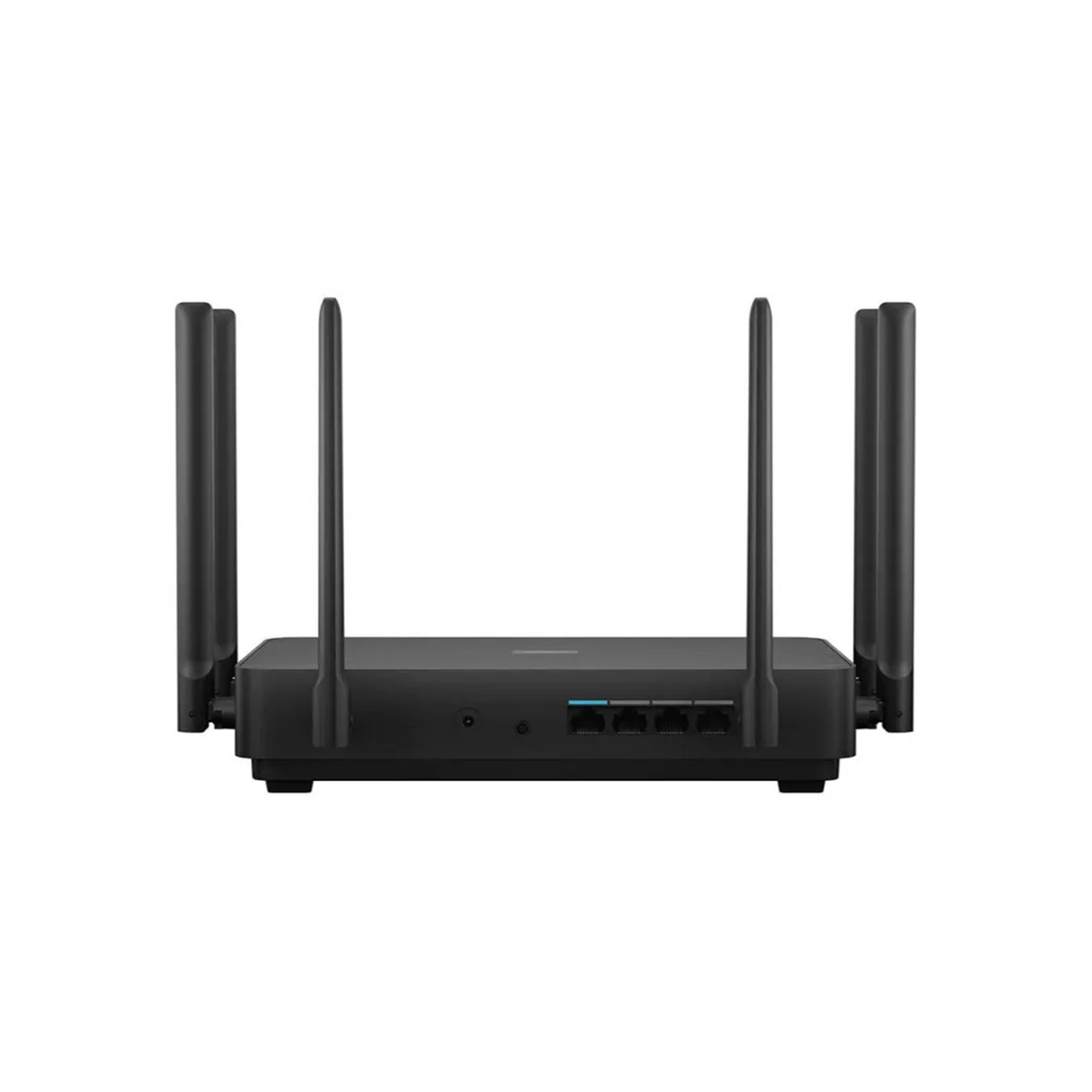

| Total ports | Adaptive WAN Port 10/100/1000Mbps (Auto MDI/MDIX) ×1 Adaptive LAN ports 10/100/1000Mbps (Auto MDI/MDIX) ×3 |

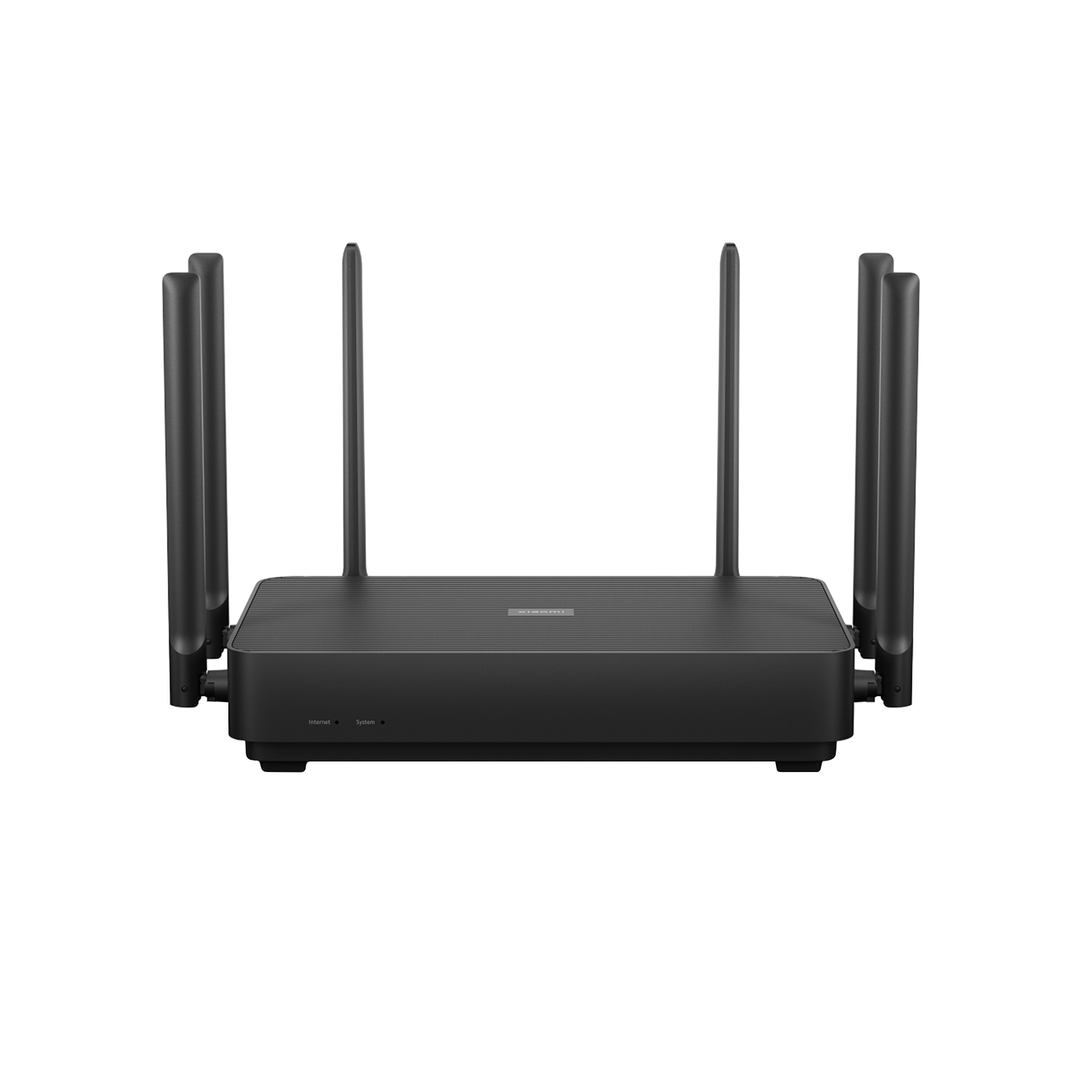

| LED indicator | 2 indicator lights, of which system light × 1, Internet light × 1 |
| System reset button | ×1 |
| Mesh button | ×1 |
| Power input port | ×1 |
| Protocol standards | IEEE 802.11a/b/g/n/ac/ax IEEE 802.3/3u/3ab |
| Wireless specification | |
| Dual-band | 2.4GHz 5GHz |
| Modulation | 11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps) 11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps) 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.256QAM. 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM. 11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM. |
| Software specifications | |
| Operating System | MiWiFi ROM, a smart router operating system based on OpenWRT |
| Wi-Fi encryption | WPA-PSK/WPA2-PSK/WPA3-SAE encryption |
| Management applications | Supports Web, Android, iOS |
| Work environment | |
| Operating environment Temperature | 0-40℃ |
| Operating humidity | 10%-90%RH (non-condensing) |
| Storage temperature | -40-70℃ |
| Storage Humidity | 5%-90%RH (non-condensing) |
FAQ
What is the maximum wireless speed that the Xiaomi AX3200 router can achieve?
Thanks to the fact that the router can operate in two Wi-Fi bands simultaneously, data transfer rates can reach up to 2402Mbps for the 5GHz band and 800Mbps for the 2.4GHz band.
